This product is specially designed for the brazing of aluminum alloy tubes across various industries:
Compatible Aluminum Alloys: Suitable for brazing 1 series (1060/1100), 3 series (3003/3026), 5 series (5052), and 6 series (6061/6063).
Manufactured using nano-aluminum-silicon alloy powder and non-corrosive flux via a specialized process.
| Element | Content (%) |
|---|---|
| Si | 8.50 ~ 10.50 |
| Fe | ≤ 0.50 |
| Cu | ≤ 0.25 |
| Mn | ≤ 0.15 |
| Mg | ≤ 0.10 |
| Zn | ≤ 0.15 |
| Ti | ≤ 0.15 |
| K | 4.50 ~ 5.50 |
| F | 7.50 ~ 8.50 |
| Cs | ≤ 0.03 |
| Al | Margin |
Color: Silvery white

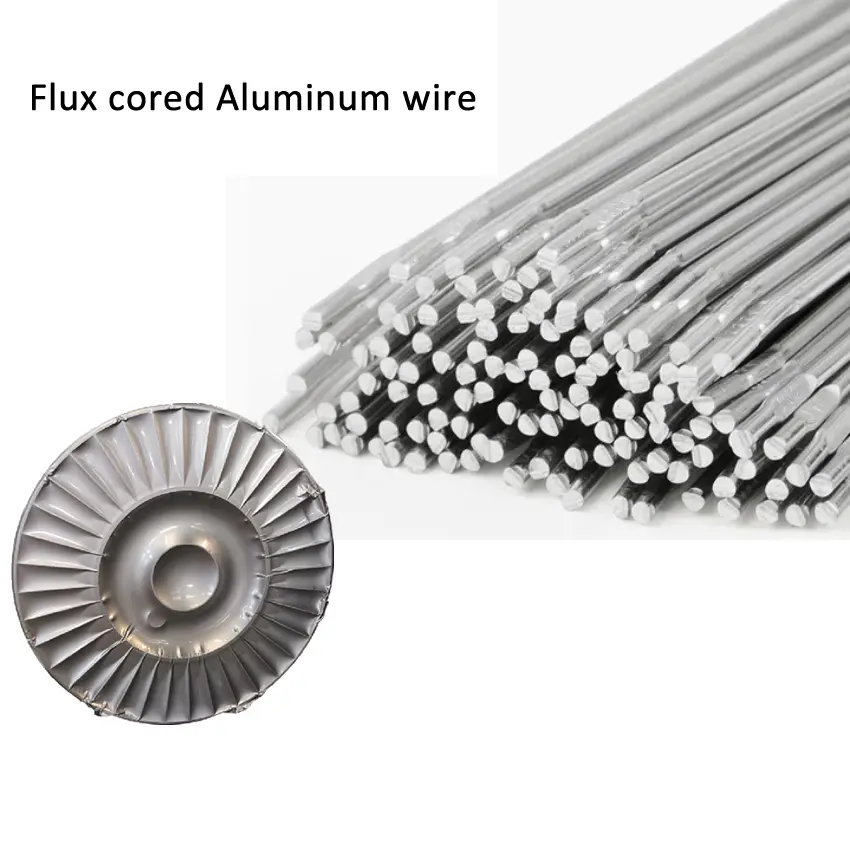

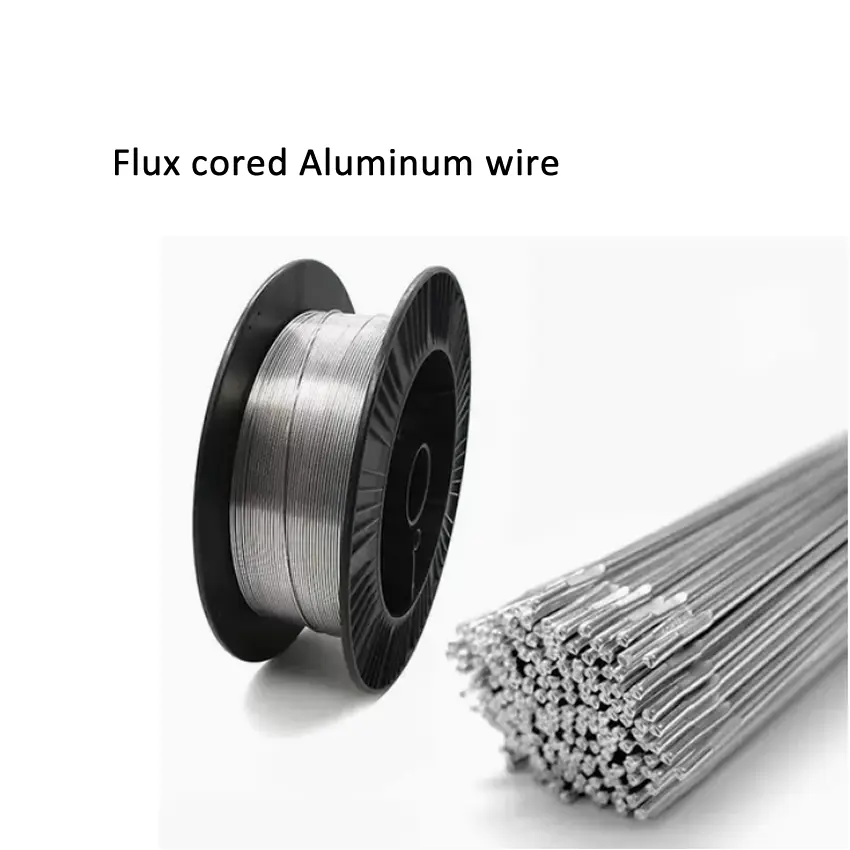

Status: Flux cored wire (Metal brazing filler outside, white flux inside)
Shape: Wire, Ring
Melting Point: 560ºC ~ 585ºC
Density: 2.55 ± 0.05 g/cm³ (at 20ºC)
1. Welding Wire Tolerance
| Wire Diameter (mm) | Deviation (mm) |
|---|---|
| 1.6 / 2.0 | ± 0.1 |
2. Welding Ring Inner Diameter Tolerance
| Basic Inner Diameter Size (mm) | Limit Deviation (mm) |
|---|---|
| 6.0 ~ 10.0 | ± 0.10 |
| 10.10 ~ 19.0 | ± 0.15 |
| 19.10 ~ 26.0 | ± 0.20 |
| 26.10 ~ 33.0 | ± 0.25 |
3. Additional Specs: Ovality < 0.1mm | Opening < 0.5mm | Flatness < 0.5mm
Material:
Specifications:

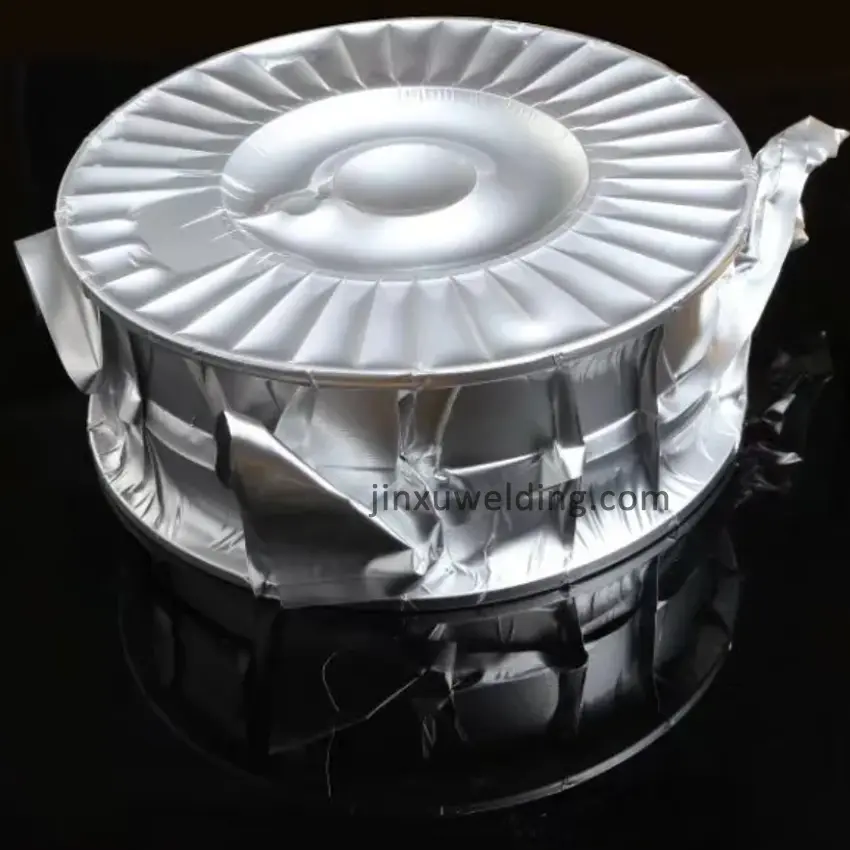

*Customized packaging available upon request. All boxes marked with name, model, and specification.
