Welding rod AWS E6013 is a kind of carton steel welding electrode with type coating, which is used for all position welding. It is suitable for welding general carton steel and ZINC-coated steel sheets for ships. AWS E6013 welding electrode has excellent operating performance, easy ignition and reignition, stable arc, perfect appearance of welding and good slag detachability. Used for welding in all position, it has excellent weldability and is suitable for welding low carbon steel light-gauge sheet or light structures where beautiful bead appearance is requested, such as vehicles, building and machinery etc.
E7018 is a basic coated hydrogen-controlled electrode for welding of 490 N/mm2 grade high tensile steel. The flux coating formula not only optimizes mechanical properties, also promotes a low hydrogen potential in the weld metal.
They apply to applications of butt welding, fillet welding well as riap welding of thin steel plate such as oil tank of transformer, vessel hull, vehicle crust low carbon steel structures for flue and venting tube.
Core diameter: 2.0-5.0mm
Length: 300-400mm
Application: Suitable for welding low-carbon steel structures, especially for thin plate small parts and cover surface welding where a beautiful and smooth weld surface is required.
Diameter: 2.5mm, 3.2mm, 4.0mm and 5.0mm
Length: 300-400mm
Application: Carbon steel electrode with a low-hydrogen potassium type coating of iron powder, suitable for welding carbon steel and low-alloy steel structures.

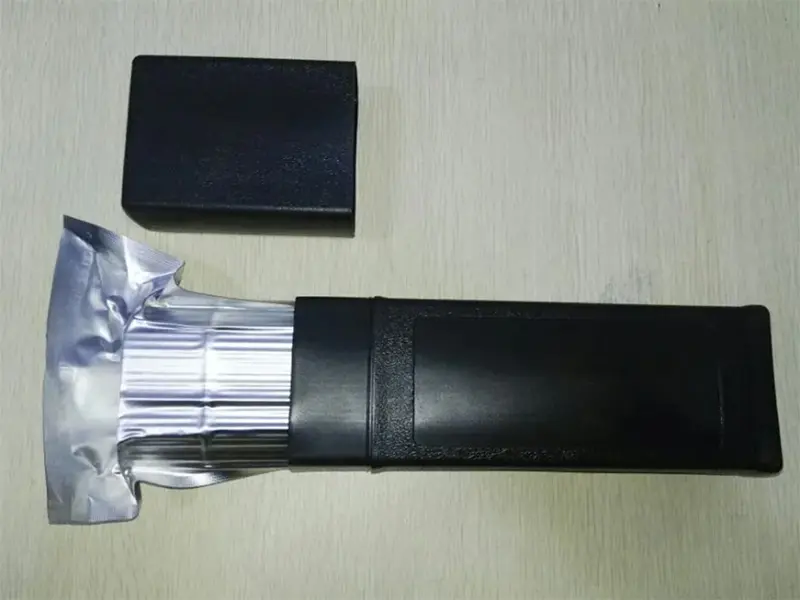

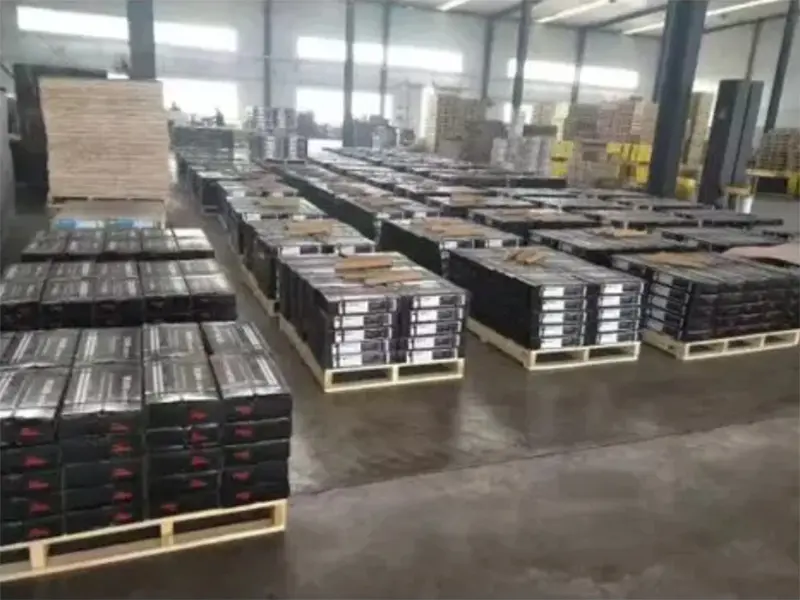

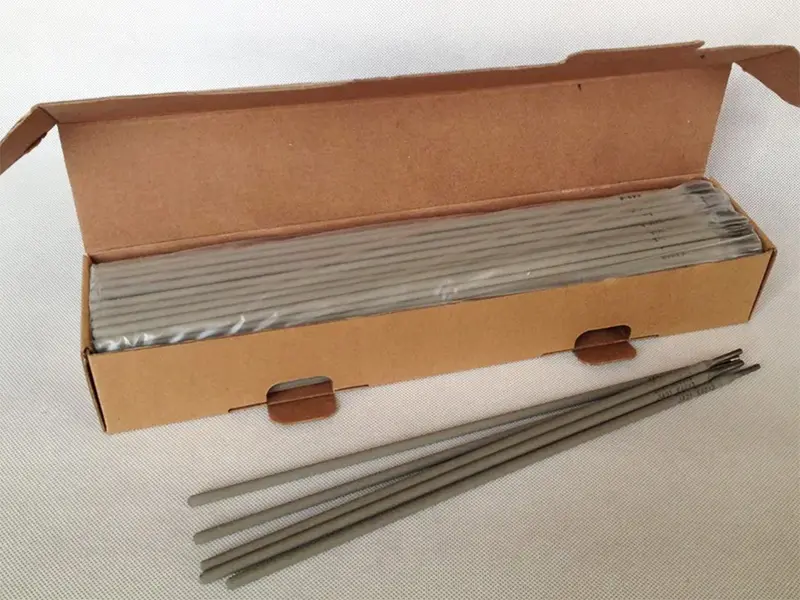

Packaging of Mild Steel Arc Welding Electrode
Standard sizes: 2.5*300mm, 3.2*350mm, 2.5*350mm, 5.0*450mm, 4.0*400mm, 5.0*400mm, 4.0*350mm, 5.0*450mm
Standard packages:
| Main component of welding electrode (%) | |||||
| Item | C | Mn | Si | S | P |
| Guarantee Values | ≤0.12 | 0.3-0.6 | ≤0.35 | ≤0.035 | ≤0.040 |
| Typical Values | 0.07 | 0.38 | 0.27 | 0.021 | 0.022 |
| Mechanical Properties of Deposited Metal | |||||
| Test Item | Tensile Strength RM(MPa) | Yield Strength ReL(MPa) | Elongation (%) | KV2 (J) Normal Temp | KV2 (J) 0ºC |
| Guarantee Values | ≥420 | ≥330 | ≥17 | - | - |
| Typical Values | 480 | 380 | 29 | 50-80 | ≥47 |
| Size and Recommended Welding Current (AC or DC) | |||||
| Size (mm) | 2.0 X 300 | 2.5 X 300 | 3.2 X 350 | 4.0 X 400 | 5.0 X 400 |
| Current (A) | 40-70 | 60-90 | 80-130 | 130-210 | 170-280 |
| Diameter (mm) | Length (mm) | Current Range (AC/DC+) |
| Ø 2.5mm | 300mm | 50-85 |
| Ø 3.2mm | 350mm | 80-130 |
| Ø 4.0mm | 400mm | 110-180 |
| Ø 5.0mm | 400mm | 150-240 |
A: AWS E6013 is ideal for all-position welding of general carbon steel and zinc-coated steel sheets. It is widely used in vehicles, buildings, machinery, and light-gauge structures where a smooth bead appearance is required.
A: E7018 is a basic coated, hydrogen-controlled electrode designed for high tensile steel (490 N/mm2 grade). It provides optimized mechanical properties and lower hydrogen potential in the weld metal compared to E6013.
A: Yes, E6013 is specifically suitable for thin plate small parts and applications like transformer oil tanks and venting tubes where a beautiful weld surface is necessary.

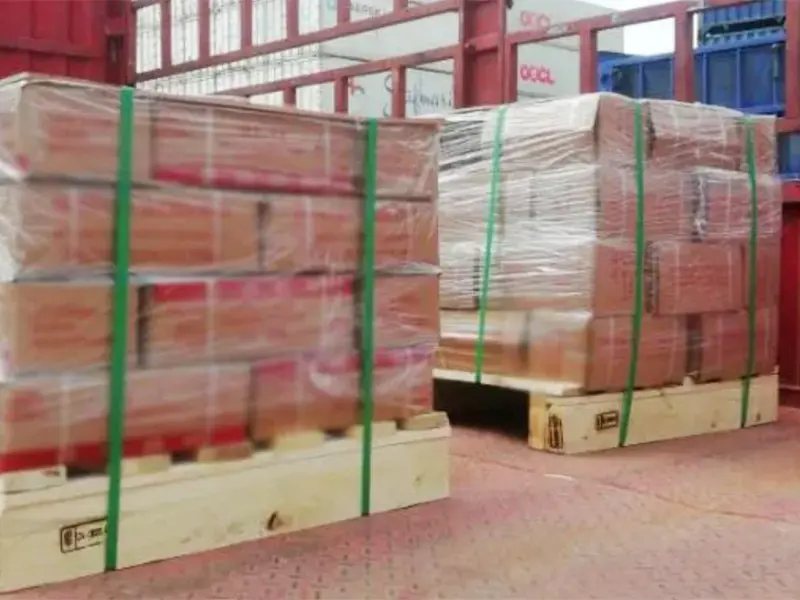

A: We offer standard packaging of 2.5 kg or 5.0 kg per inner box. These are further packed into 20kg cartons, with each pallet holding 1 metric ton (50 cartons).
A: The E6013 electrode is designed for all-position welding, offering stable arc performance and easy slag removal regardless of the orientation.
A: For a 3.2mm x 350mm electrode, the recommended current range is typically between 80-130 Amps (AC or DC).
